Photovoltaic system solution
- Flat Single Axis Tracking Bracket System -

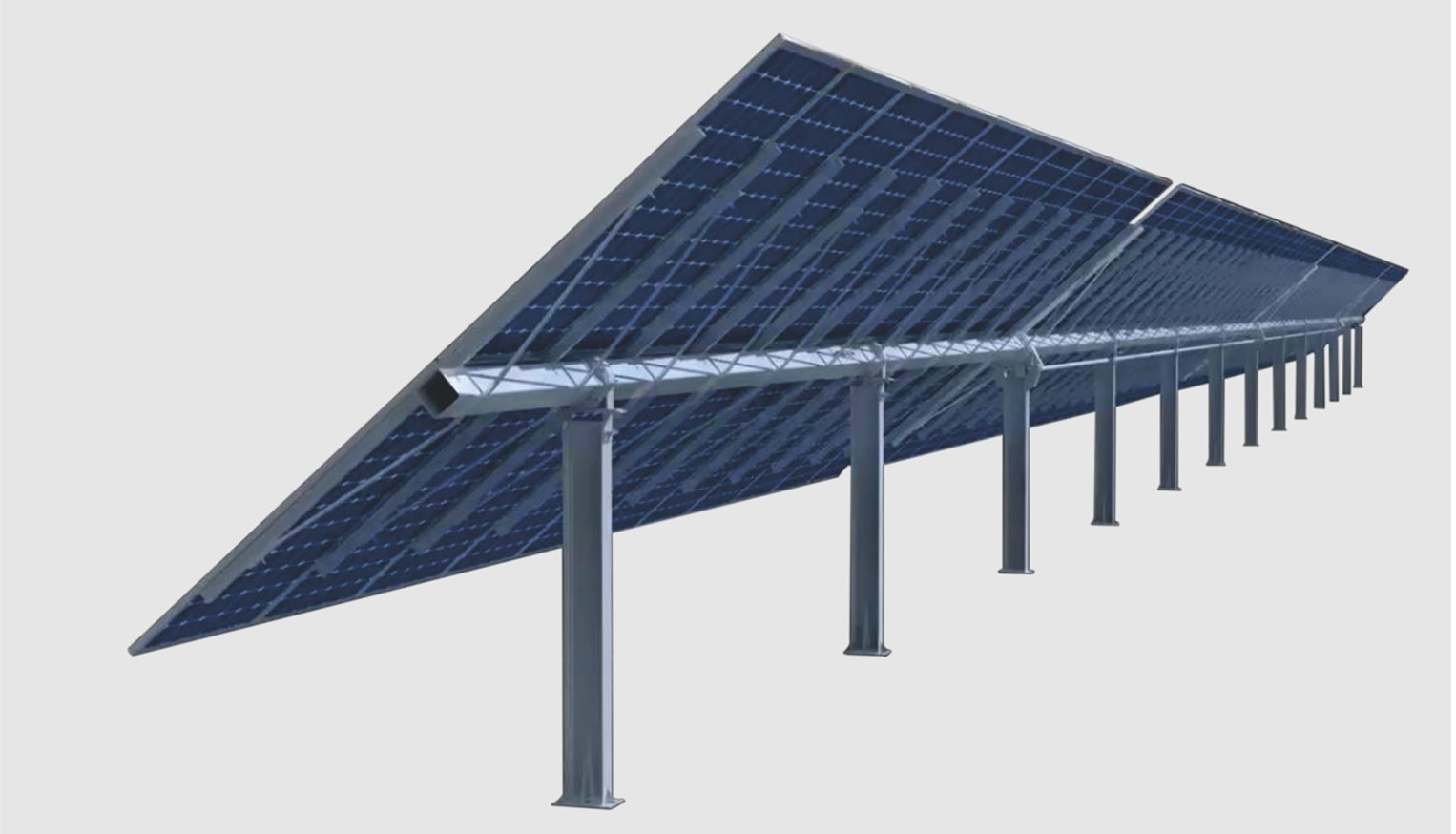

Flat Single Axis Tracking Bracket System
l Product features Security apply Superior control system Convenient operation and maintenance l Parameters of tracking system System installed capacity 2x60块 Tracking angle ±60° (customizable) control mode Astronomical time control +ai intelligent algorithm GCR (land utilization ratio) 30%~60% (customizable) Tracking accuracy ±2° Product material Carbon steel / zinc aluminum magnesium / pre galvanized Driving mode Multi point swing drive / push rod Foundation type Steel pile /phc pile / cast-in-place pile / independent foundation Maximum operating wind speed 18m/s Component type Compatible with all border components Maximum safe wind speed 45m/s (customizable） Degree of protection IP65 working temperature -30℃~80℃(customizable) life 25 years l Parameters of electrical control Power supply mode Grid power supply / component self power supply / String power supply Gale protection have Communication mode Wireless Lora transmission / wired RS485 Cleaning mode Optional Heavy snow mode Optional System energy consumption 0.1KWh（24h） Shadow backtracking have l Warranty Structural member 10 years Drive and control components 5 years
